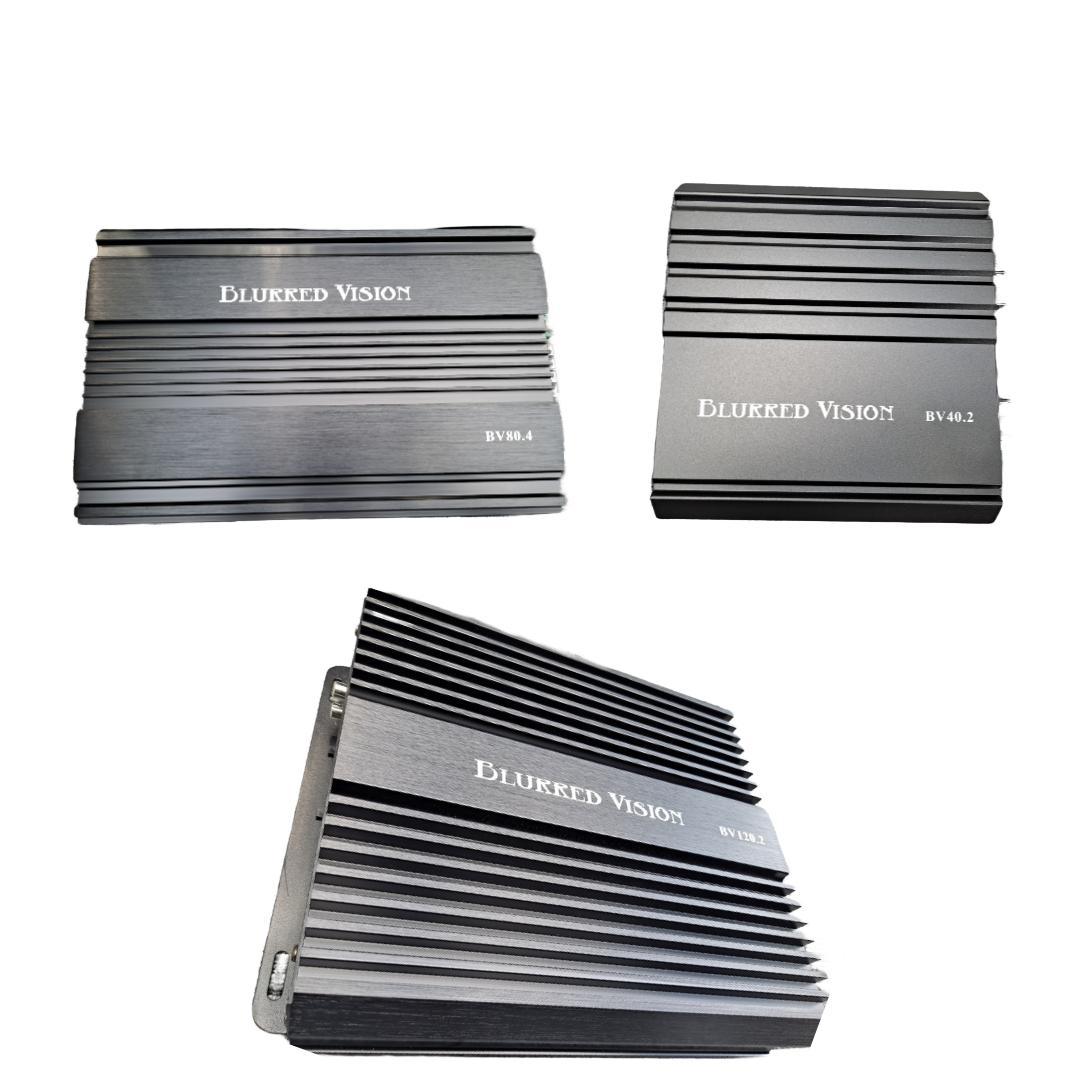

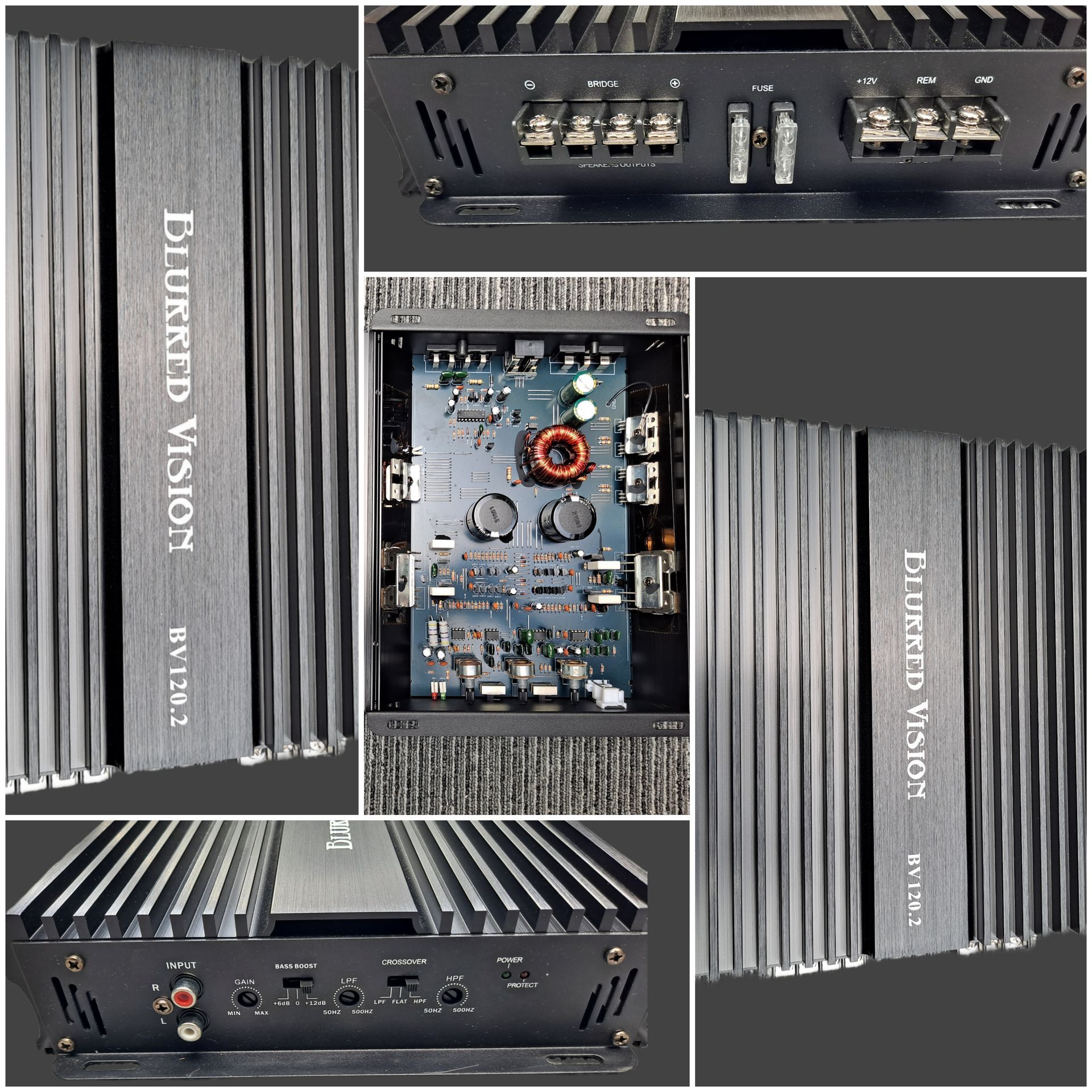

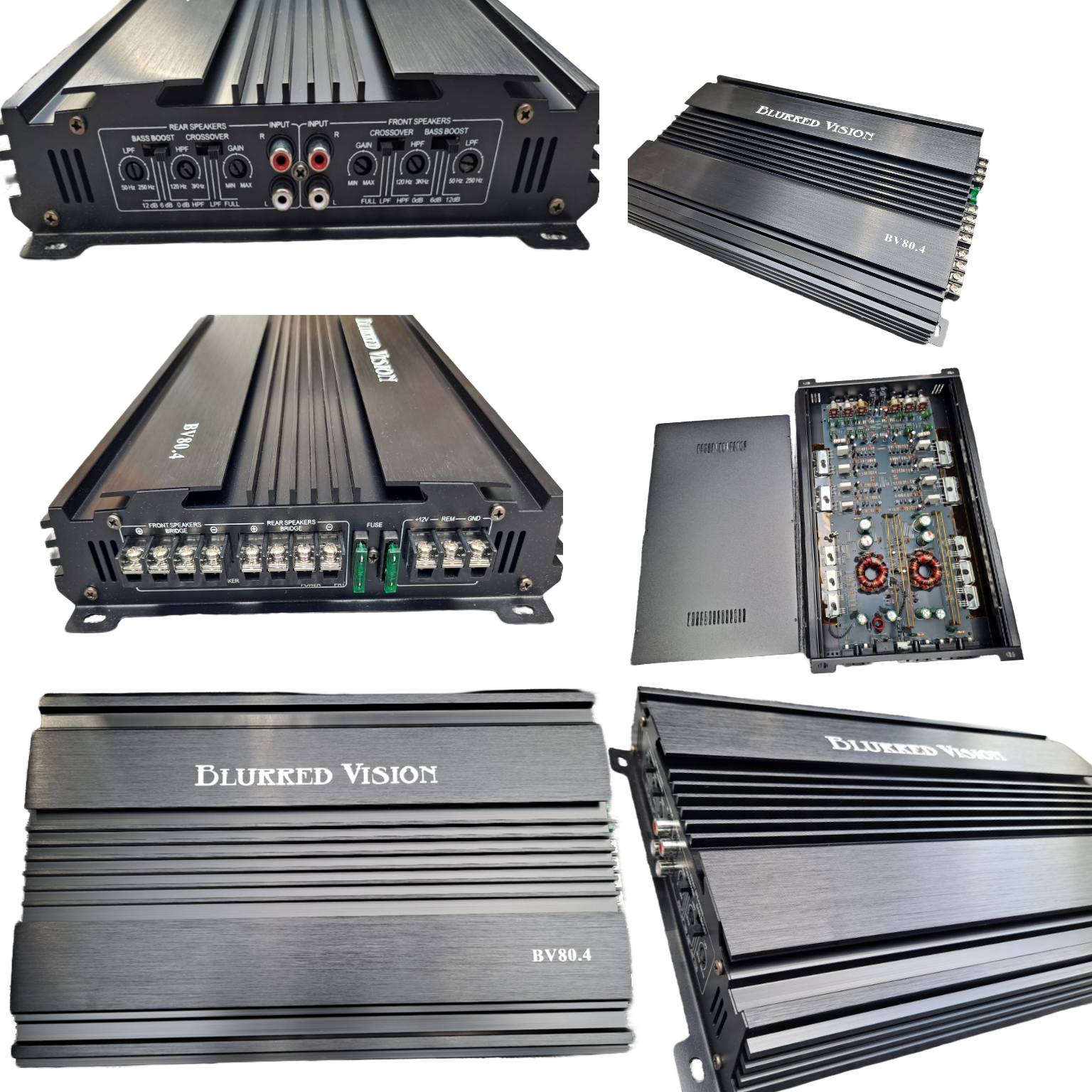

Blurred Vision Audio Class AB Amplifiers
High powered, Efficient and Professional Rated
Blurred Vision Audio

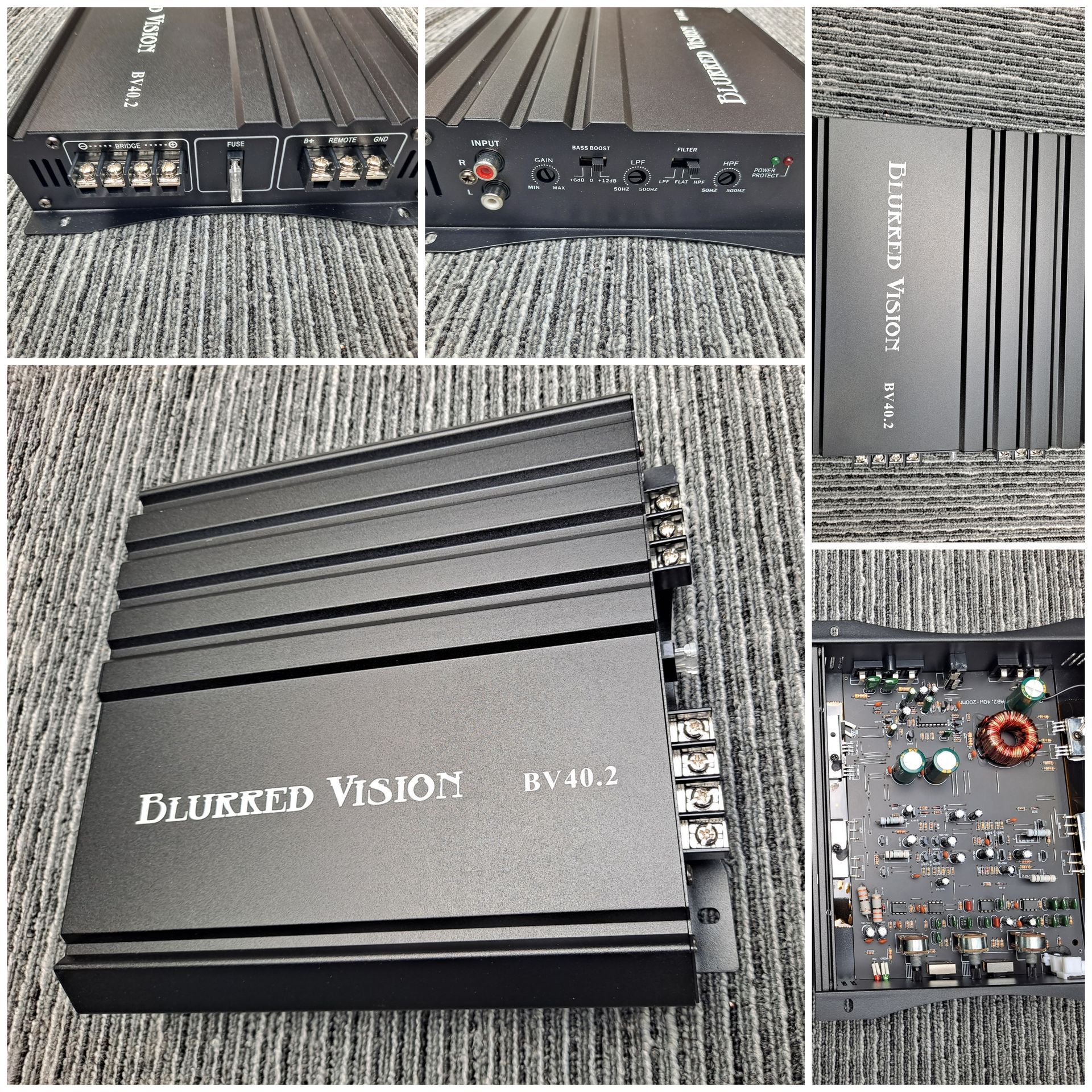

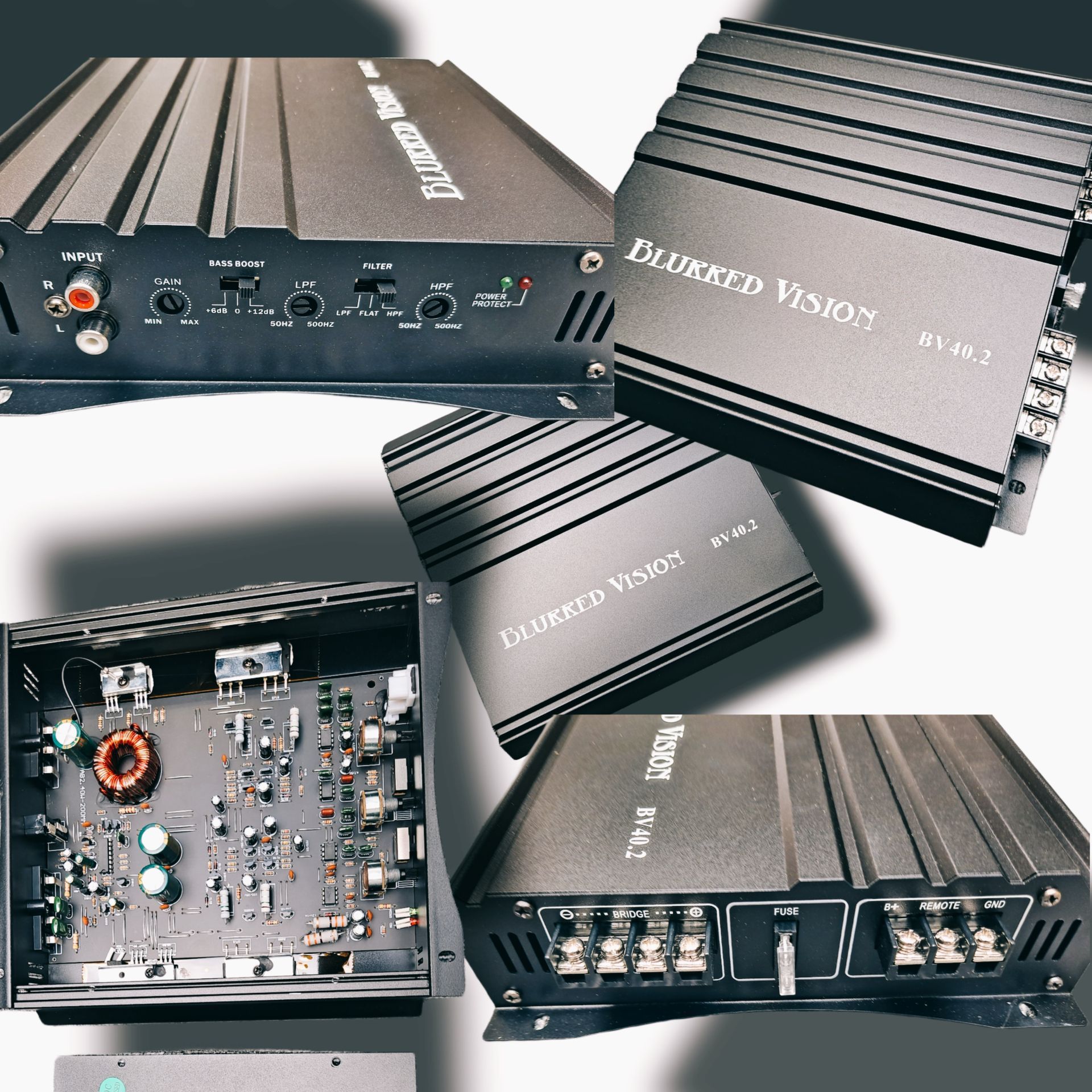

BV40.2
Blurred Vision Audio KNOCKOUT SERIES Subwoofers
Blurred Vision Audio KNOCKOUT SERIES 12" Subwoofers
Specifications
Model BV-12 or D2*-D4* options
Size 12
Surround Material Foam
Cone Material Carbon
Frame Material Stamped Steel
Magnet Ferrite
Power RMS 1000
Power Peak 2000
Voice Coil Black 3"
VOICE Coil Material BASV (BLACK ALUMINUM FOIL SV COATED)
High End Quality subwoofers!!
Quality You Can Count On!!
Super-Efficient!
Blurred Vision Audio KNOCKOUT SERIES 15" Subwoofers
Specifications
Model BV-15 D2-D4
Size 15
Surround Material Foam
Cone Material Carbon
Frame Material Stamped Steel
Magnet Ferrite
Power RMS 1200
Power Max 2400
Voice Coil Black 3"
VOICE Coil Material BASV (BLACK ALUMINUM FOIL SV COATED)
High End Quality subwoofers!!
Quality You Can Count On!!
Super-Efficient!
Blurred Vision Audio StreetBeats12.4 Subwoofers
For the hard-core installs, the all new Blurred Vision Audio StreetBeats12.4 moves to an even bigger motor for greater motor strength. To keep all things cool inside, we brought back the pole vent allowing air to pass through both ends of the motor. With weaved leads, the StreetBeats12.4 really hammer away for a long time with out showing any signs of wear.
Incorporating a shorting ring into the new model, the StreetBeats12.4 inductance kept in check. For the sound quality side of things, we took a page from the KNOCKOUT SERIES and incorporated a shorting ring to keep inductance in check, as well as moved to a higher roll surround and adjusted suspension for a more Xmax
.Conservatively rated at 1000 rms, the StreetBeats12.4 can really take some power if you want to have some thunderous output. But, at the same time, if you just want to add a smooth and easily blended bassline to your daily driving the StreetBeats12.4 can do it too, even in smaller sealed boxes. With dual Nomex progressive spiders and high roll surround, the this subwoofer has the suspension to really stretch its legs while keeping the moving mass under control
.If you want a class leading sound quality and vision blurring output, but do not want to make your checking account sweat, the StreetBeats12.4 remains the educated choice for people who expect the best
Blurred Vision Audio KNOCKOUT SERIES BV-4STACK8.4 8"
Product Specifications
8”
1100 Watts Power (Peak)
500 Watts Power (R.M.S)
Pressed paper cone
Custom Motor Magnet Sticker
Carbon fiber cone
Custom 1" High roll Foam Surround
XL FLAT SEWN IN TINSEL LEADS
Frequency Response: 30~1.200Hz
Sensitivity: 84.60
2.5" 4-High Temperature Layer Kapton Voice Coil BASV
Powdered Black Die cast Aluminum Basket
Silver Push Spring Loaded Terminals
Diameter: 8-3/4"
Mounting Depth: 6 1/2
Impedance: 2 x 4 Ohms
150 Oz Magnet
12.5 Pounds
Xmax 15
Blurred Vision Audio KNOCKOUT SERIES BV-4STACK6.5.4 6.5"
Product Specifications
6.5"
750 Watts Power (Peak)
350 Watts Power (R.M.S)
Pressed paper Cone
Carbon Fiber Dustcap
Custom Motor Magnet Sticker
Custom .75" High/wide Foam Surround
XL FLAT SEWN FLAT TINSEL LEADS
Frequency Response: 30~1.200Hz
Sensitivity: 84.50
2" 4-High Temperature Layer Kapton Voice Coil BASV
Powdered Black Die Cast Aluminum Basket
Silver Push Spring Loaded Terminals
Diameter: 7"
Mounting Depth: 6 1/2
Impedance: 2 x 4 Ohms
Triple Stacked 150 Oz Magnet
11.5 Pounds
Xmax
Fs 55.524
Drop in Recone kits also available!
!Don't let the size fool you! This little monster will not skip a beat and take any note you can throw at it
!Worry Fre
Every item is tested and inspected before shipping out from our facility! This gives you peace of mind knowing you will recive working items every time you buy no questions!
Blurred Vision Audio KNOCKOUT SERIES BV-3STACK8.4 8"
Product Specifications
8”
750 Watts Power (Peak)
350 Watts Power (R.M.S)
Pressed paper Cone
Carbon Fiber Dustcap
Foam Gasket
Custom High/wide Foam Surround
XL FLAT SEWN FLAT TINSEL LEADS
Frequency Response: 30~1.200Hz
Sensitivity: 84.00
2.5" 4-High Temperature Solid Copper Coil
Stamped Steel Basket
Spade Terminals
Diameter: 7"
Mounting Depth: 5.5"
Impedance: 2 x 4 Ohms
Triple Stacked 112 Oz Magnet
Xmax 8mm
Fs 58.765
Blurred Vision Audio KNOCKOUT SERIES BV-3STACK6.5.4 6.5"
Product Specifications
6.5"
450 Watts Power (Peak)
200 Watts Power (R.M.S)
Pressed paper Cone
Carbon Fiber Dustcap
Foam Gasket
Custom High/wide Foam Surround
XL FLAT SEWN FLAT TINSEL LEADS
Frequency Response: 30~1.200Hz
Sensitivity: 84.50
2" 4-High Temperature Layer Kapton Voice Coil BASV
Stamped Steel Basket
Spade Terminals
Diameter: 7"
Mounting Depth: 6 1/2
Impedance: 2 x 4 Ohms
Triple Stacked 66 Oz Magnet
Xmax 8mm
Fs 63.539
Blurred Vision has laid its roots in high quality audio reproduction through in-house engineering and a dedication to customers satisfaction.
