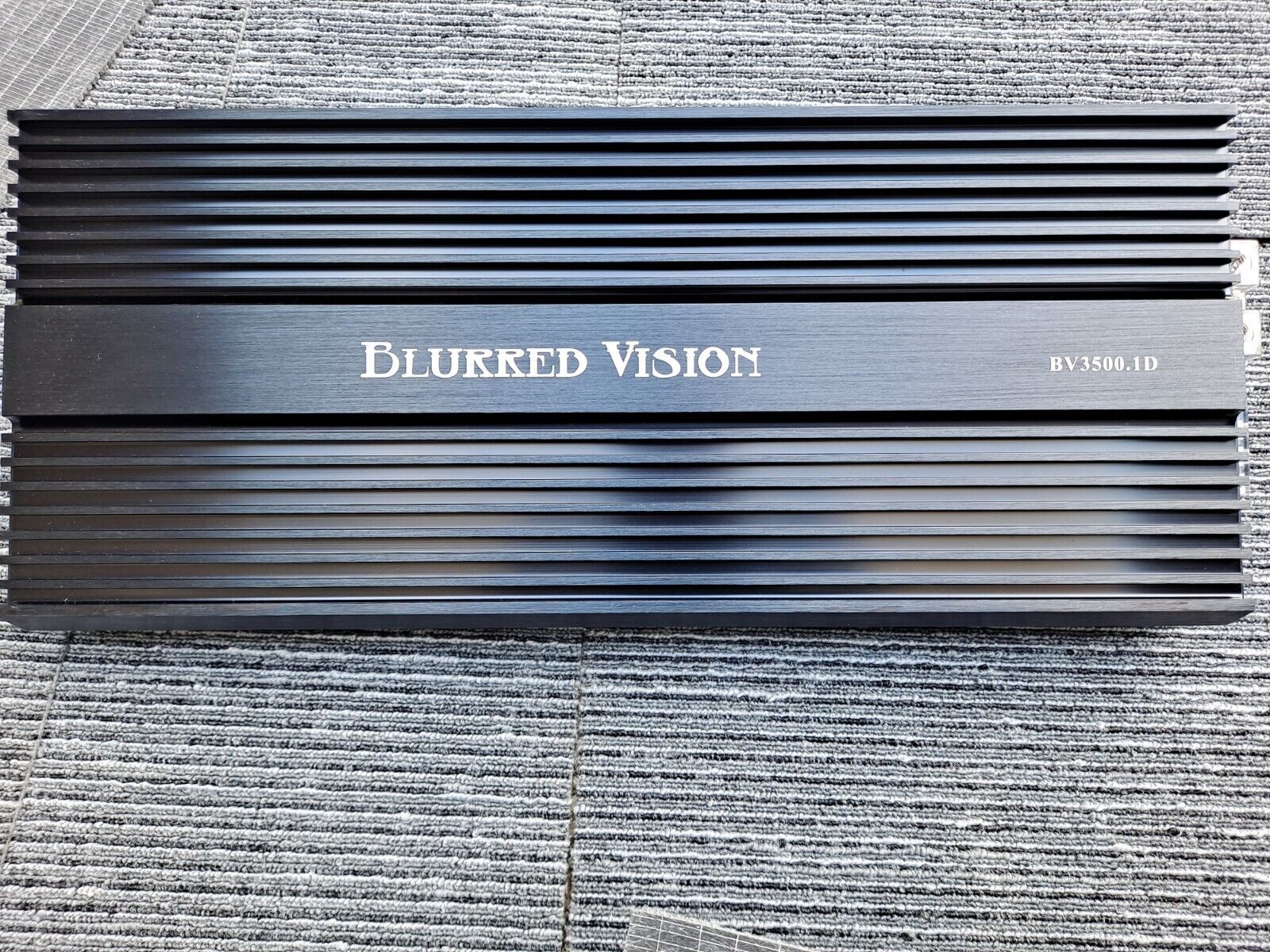

Blurred Vision Audio BV3500.1D RMS MONOBLOCK AMPLIFIER

Half bridge designed Blurred Vision monoblock class D amplifier capable of making over 3500 watts RMS @1 ohm with ease...

Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button

Description:

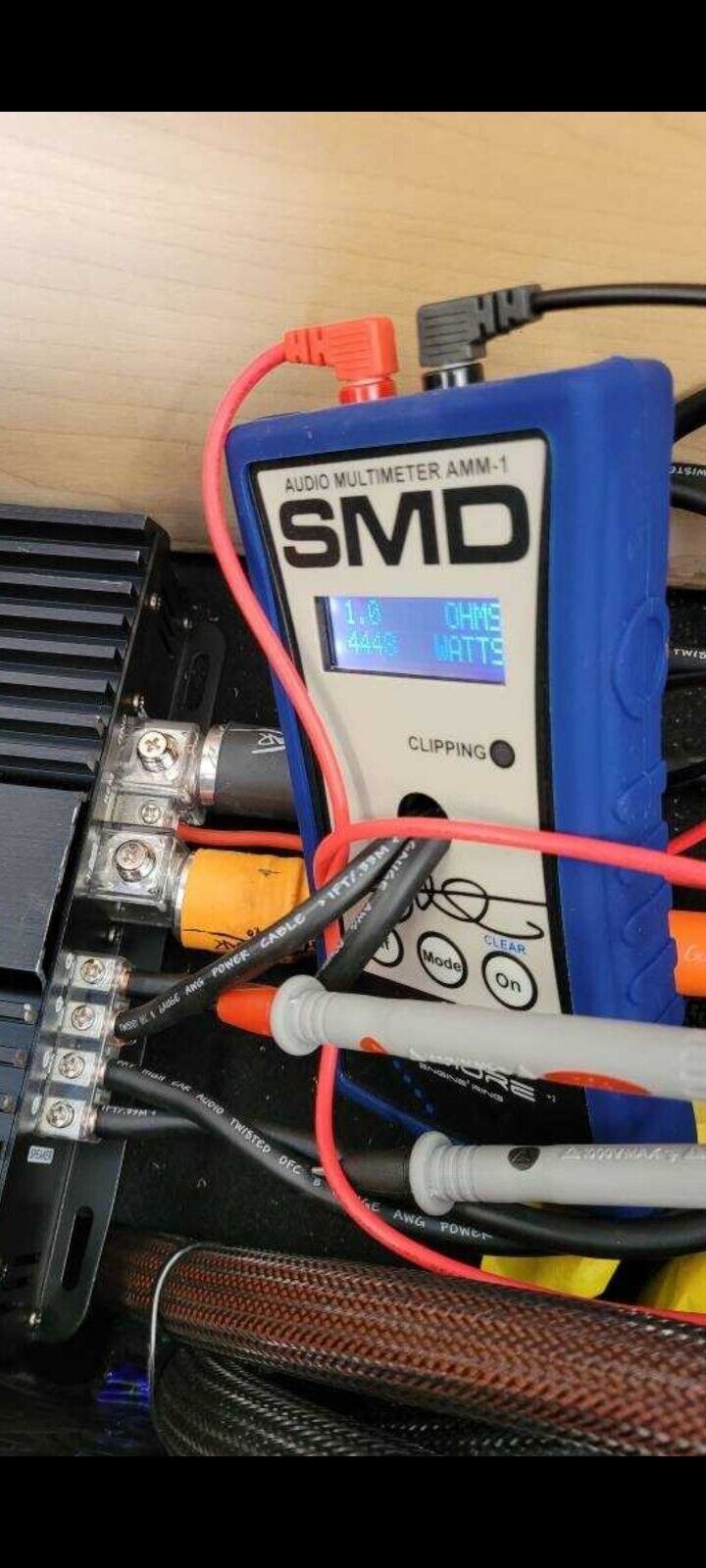

This amp put out over 4448 ++watts RMS at 1 ohm on the amp dyno.

(Power: 4448 @ 1 ohm at 13.98 uncertfied run to Clipping) Low voltage low ohm pure torture test! amps suppress expectations

4 ohm 750Wx1 @ 14.4 Volts

2 ohm 1800Wx1 @ 14.4 Volts
1 ohm mono 3500x1 @ 14.4 Volts

Specs:

Operational Voltage: 9.0-16.0v

True Ratings Power and Underrated

Input Sensitivity6V~0.2V
Frequency Response20Hz~250KHz
24dB / Octave CrossoverYES
Low Pass 40Hz ~ 180Hz
Subsonic Filter 0Hz-50hz
Bass Boost @45hz0 ~ 9db
Phase Shift0 ~ 180
Signal to Noise Ratio dB100
Damping Factor200<THD @ 4ohmsLess than 0.1%
Fuse Rating External 350 amp
LED Status LightsPower
Soft turn on and off thump control
Laser engraved Blurred Vision logo
3.5 mm bass knob

Dimensions:

Weight: 18.00 LBS

Width: 20 (in)

Height: 9.00 (in)

Depth: 2.25 (in)

Receive just item listed

Amplifier and bass knob!

Related Products

BV1500.1D

Title or short description

Product Details

Blurred Vision Audio KNOCKOUT SERIES Subwoofers

Blurred Vision Audio KNOCKOUT SERIES 12" Subwoofers

Specifications

Model BV-12 or D2*-D4* options

Size 12

Surround Material Foam

Cone Material Carbon

Frame Material Stamped Steel

Magnet Ferrite

Power RMS 1000

Power Peak 2000

Voice Coil Black 3"

VOICE Coil Material BASV (BLACK ALUMINUM FOIL SV COATED)

High End Quality subwoofers!!

Quality You Can Count On!!

Super-Efficient!

Specs &Buy Now KNOCKOUT BV-12 (D2) Specs & Buy Now KNOCKOUT BV-12 (D4)

Blurred Vision Audio KNOCKOUT SERIES 15" Subwoofers

Specifications

Model BV-15 D2-D4

Size 15

Surround Material Foam

Cone Material Carbon

Frame Material Stamped Steel

Magnet Ferrite

Power RMS 1200

Power Max 2400

Voice Coil Black 3"

VOICE Coil Material BASV (BLACK ALUMINUM FOIL SV COATED)

High End Quality subwoofers!!

Quality You Can Count On!!

Super-Efficient!

Specs & Buy Now KNOCKOUT BV-15 (D2) Specs & Buy Now KNOCKOUT BV-15 (D4)

Blurred Vision Audio StreetBeats12.4 Subwoofers

Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button

For the hard-core installs, the all new Blurred Vision Audio StreetBeats12.4 moves to an even bigger motor for greater motor strength. To keep all things cool inside, we brought back the pole vent allowing air to pass through both ends of the motor. With weaved leads, the StreetBeats12.4 really hammer away for a long time with out showing any signs of wear.

Incorporating a shorting ring into the new model, the StreetBeats12.4 inductance kept in check. For the sound quality side of things, we took a page from the KNOCKOUT SERIES and incorporated a shorting ring to keep inductance in check, as well as moved to a higher roll surround and adjusted suspension for a more Xmax

.Conservatively rated at 1000 rms, the StreetBeats12.4 can really take some power if you want to have some thunderous output. But, at the same time, if you just want to add a smooth and easily blended bassline to your daily driving the StreetBeats12.4 can do it too, even in smaller sealed boxes. With dual Nomex progressive spiders and high roll surround, the this subwoofer has the suspension to really stretch its legs while keeping the moving mass under control

.If you want a class leading sound quality and vision blurring output, but do not want to make your checking account sweat, the StreetBeats12.4 remains the educated choice for people who expect the best

Specs & Buy Now

Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button

Blurred Vision Audio KNOCKOUT SERIES BV-4STACK8.4 8"

Product Specifications

8”

1100 Watts Power (Peak)

500 Watts Power (R.M.S)

Pressed paper cone

Custom Motor Magnet Sticker

Carbon fiber cone

Custom 1" High roll Foam Surround

XL FLAT SEWN IN TINSEL LEADS

Frequency Response: 30~1.200Hz

Sensitivity: 84.60

2.5" 4-High Temperature Layer Kapton Voice Coil BASV

Powdered Black Die cast Aluminum Basket

Silver Push Spring Loaded Terminals

Diameter: 8-3/4"

Mounting Depth: 6 1/2

Impedance: 2 x 4 Ohms

150 Oz Magnet

12.5 Pounds

Xmax 15

Specs & Buy Now

Blurred Vision Audio KNOCKOUT SERIES BV-4STACK6.5.4 6.5"

Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button

Product Specifications

6.5"

750 Watts Power (Peak)

350 Watts Power (R.M.S)

Pressed paper Cone

Carbon Fiber Dustcap

Custom Motor Magnet Sticker

Custom .75" High/wide Foam Surround

XL FLAT SEWN FLAT TINSEL LEADS

Frequency Response: 30~1.200Hz

Sensitivity: 84.50

2" 4-High Temperature Layer Kapton Voice Coil BASV

Powdered Black Die Cast Aluminum Basket

Silver Push Spring Loaded Terminals

Diameter: 7"

Mounting Depth: 6 1/2

Impedance: 2 x 4 Ohms

Triple Stacked 150 Oz Magnet

11.5 Pounds

Xmax

Fs 55.524

Drop in Recone kits also available!

!Don't let the size fool you! This little monster will not skip a beat and take any note you can throw at it

!Worry Fre

Every item is tested and inspected before shipping out from our facility! This gives you peace of mind knowing you will recive working items every time you buy no questions!

Specs & Buy Now

Blurred Vision Audio KNOCKOUT SERIES BV-3STACK8.4 8"

Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button

Product Specifications

8”

750 Watts Power (Peak)

350 Watts Power (R.M.S)

Pressed paper Cone

Carbon Fiber Dustcap

Foam Gasket

Custom High/wide Foam Surround

XL FLAT SEWN FLAT TINSEL LEADS

Frequency Response: 30~1.200Hz

Sensitivity: 84.00

2.5" 4-High Temperature Solid Copper Coil

Stamped Steel Basket

Spade Terminals

Diameter: 7"

Mounting Depth: 5.5"

Impedance: 2 x 4 Ohms

Triple Stacked 112 Oz Magnet

Xmax 8mm

Fs 58.765

Specs & Buy Now

Blurred Vision Audio KNOCKOUT SERIES BV-3STACK6.5.4 6.5"

Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button

Product Specifications

6.5"

450 Watts Power (Peak)

200 Watts Power (R.M.S)

Pressed paper Cone

Carbon Fiber Dustcap

Foam Gasket

Custom High/wide Foam Surround

XL FLAT SEWN FLAT TINSEL LEADS

Frequency Response: 30~1.200Hz

Sensitivity: 84.50

2" 4-High Temperature Layer Kapton Voice Coil BASV

Stamped Steel Basket

Spade Terminals

Diameter: 7"

Mounting Depth: 6 1/2

Impedance: 2 x 4 Ohms

Triple Stacked 66 Oz Magnet

Xmax 8mm

Fs 63.539

Specs & Buy Now

Blurred Vision has laid its roots in high quality audio reproduction through in-house engineering and a dedication to customers satisfaction.
